EX D SYSTEM SOLUTION

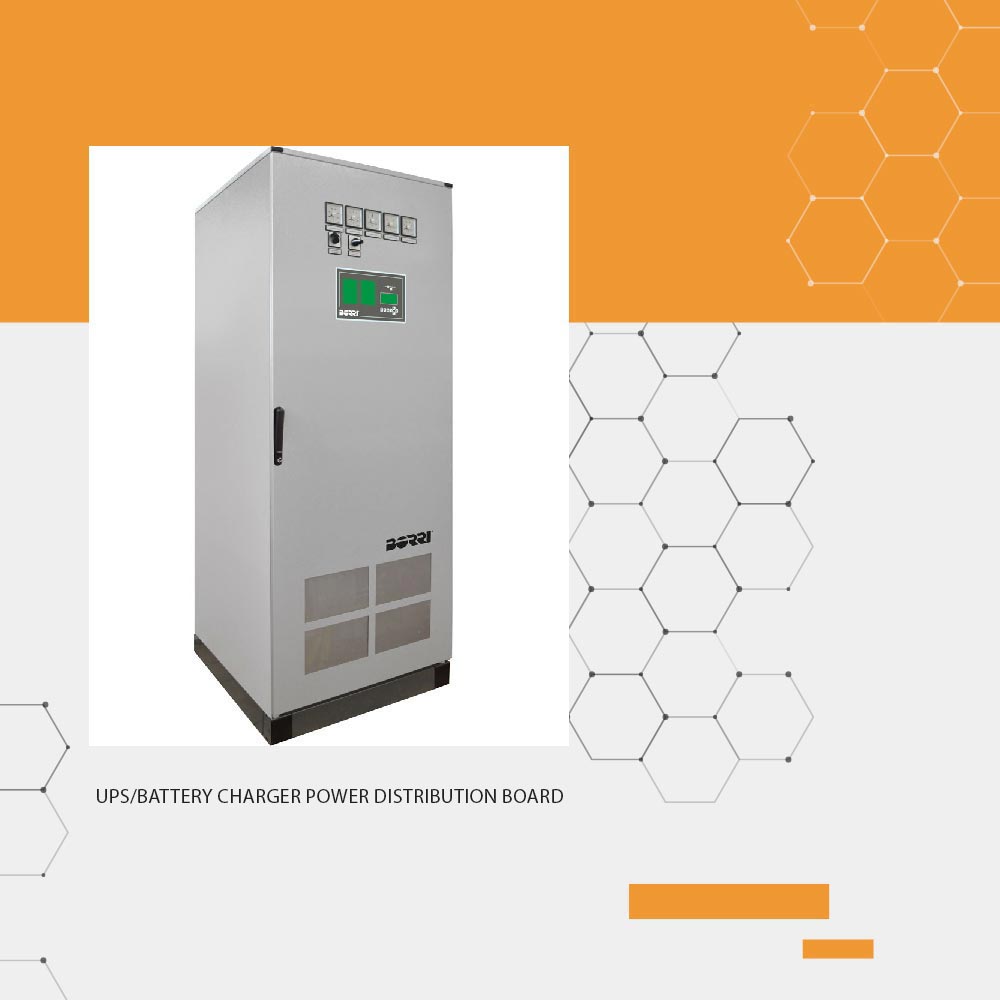

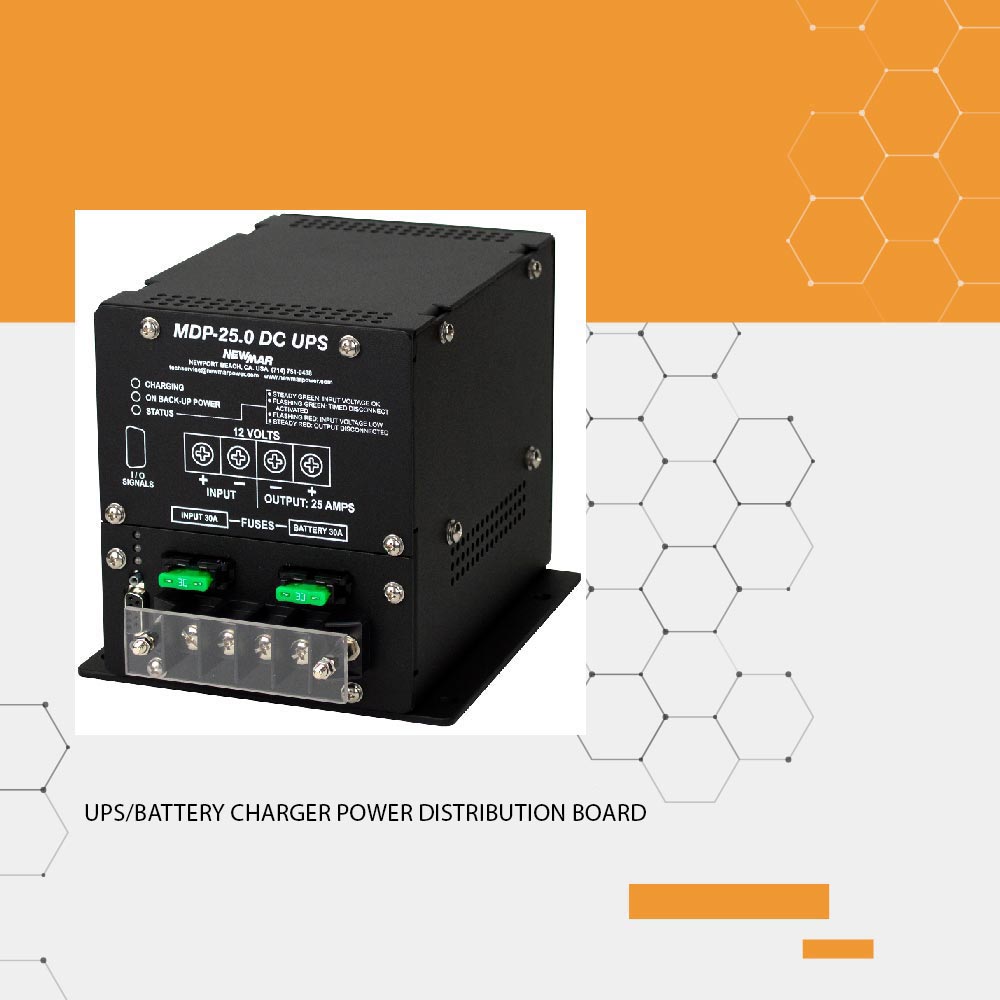

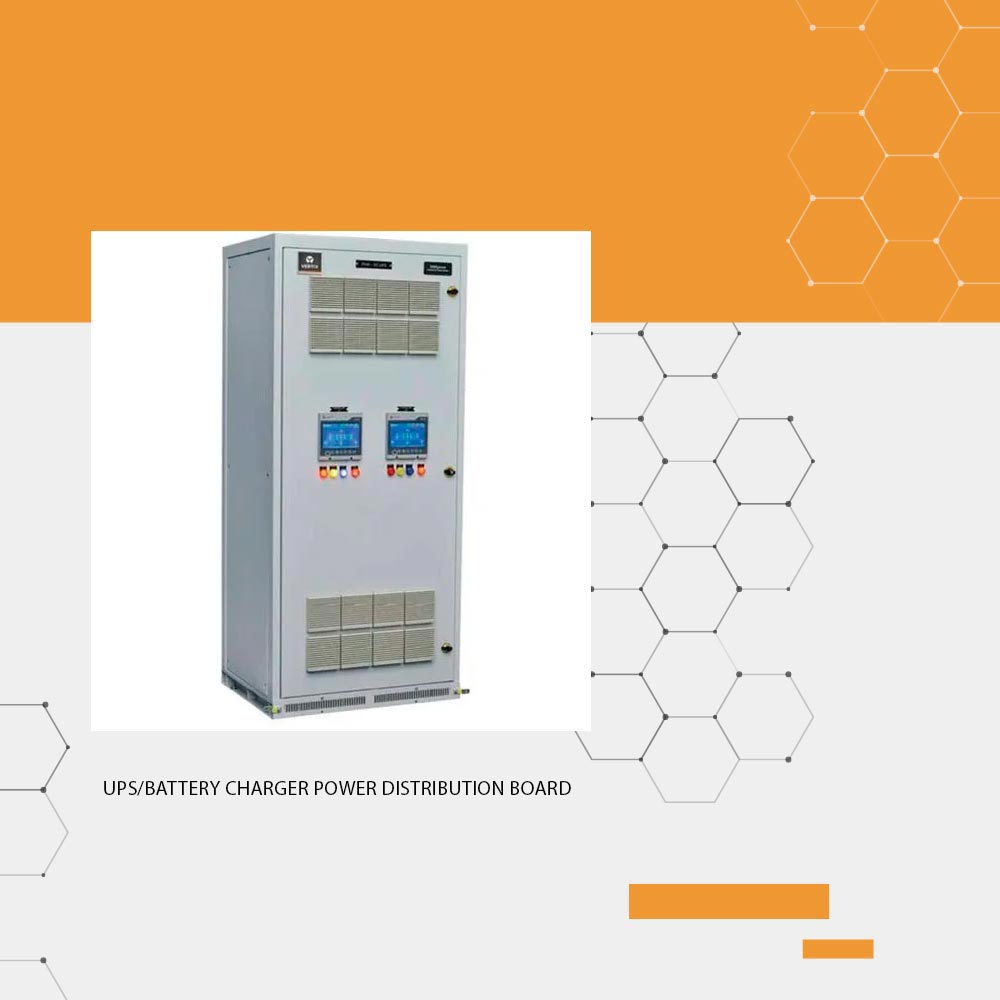

UPS/BATTERY CHARGER POWERDISTRIBUTION BOARD

TECHNICAL SPECIFICATION

Custom-designed for use in Zone-1 and Zone-2, the type of protection is II 2 G Ex dIIB+H2 T6/T5, and the degree of protection is IP66/IEC 60529. Certification is accordingto the ATEX directive. We provide a complete system solution for motor control centers,UPS, or battery chargers in one integrated package, including a freestanding rack.

Enclosure Specifications

II 2GD Ex d Cast aluminum boxes, epoxy painted RAL color, Stainless Steel screw bolt,hinged door type.

Enclosures are available in a wide range of sizes to house breakers, starters, controlunits, electronic cards, relays, meters, etc.

Frame/Rack

Structural steel channel welded and bolted. The standard finish is hot-dipped galvanizedsteel or painted.

Features

Complete factory assemblies, panels are interconnected through bushing and wired,reducing maintenance time and cost by having controls grouped. Custom-built racks aredesigned to meet specific requirements.
